LSW003
LSW005

Smart Wedge Universal Rekeying Kits

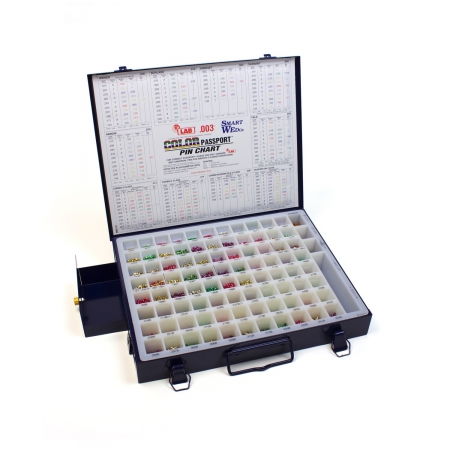

  • LSW003
    • .003 Increments
    • 92 Sizes
    • Top Pins: .024T – .200T, .235T
    • Spool Pins .160J .165J .180J
    • T-Pin .170TP
    • Bottom Pins: .159B – .354B
    • Contains the most commonly used sizes – No Dead Stock.

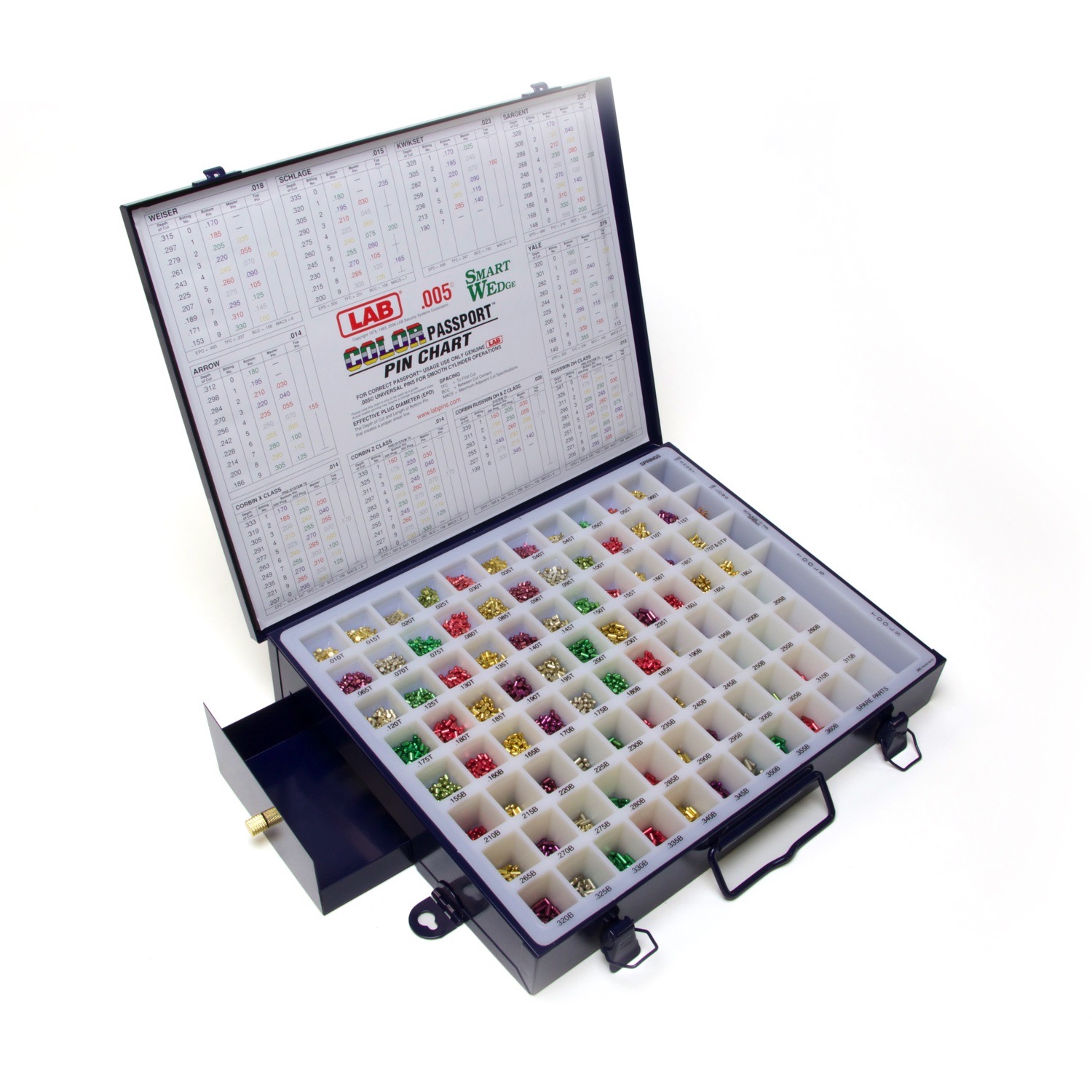

  • LSW005
    • .005 Increments
    • 86 Sizes
    • Top Pins: .010T – .200T .230T .235T
    • Spool Pins .160J .165J .180J
    • T-Pin .170TP
    • Bottom Pins: .155B – .360B
    • Contains the most commonly used sizes – No Dead Stock.
Part Number: LSW Category: Tags: , , , , ,

Description

  • 40% Smaller in width than our Pro Kits 13-1/4″ x 10-1/2″, Height 2″ Front, 3-1/4″ Rear
  • Developed by Locksmiths with Confined Workspace in Mind.
  • Color Passport Pin Chart®
  • Slide-Out Tool Drawer
  • 3 Deep Spring Pockets
    • Tangle Resistant .115 Long Springs & .115 Short Springs
    • T-Pin Spring for Schlage “F” Series Cylinders
  • Double-Sized Pin Pockets hold up to 200 pins per size
  • Large Tool Pocket on Top of Tray
  • Injection Molded High-Impact Tray with Pin Sizes Printed 100% Larger
  • Contains 3 Sizes of Spool Pins and the “F” Series T-Pin for Schlage Cylinders.
  • 72 pins per pocket, 100 springs per pocket
  • Drawer Size 6-1/2″ long x 5-1/2″ wide, Height: 1-1-7/8″ side angled
