LRCK6

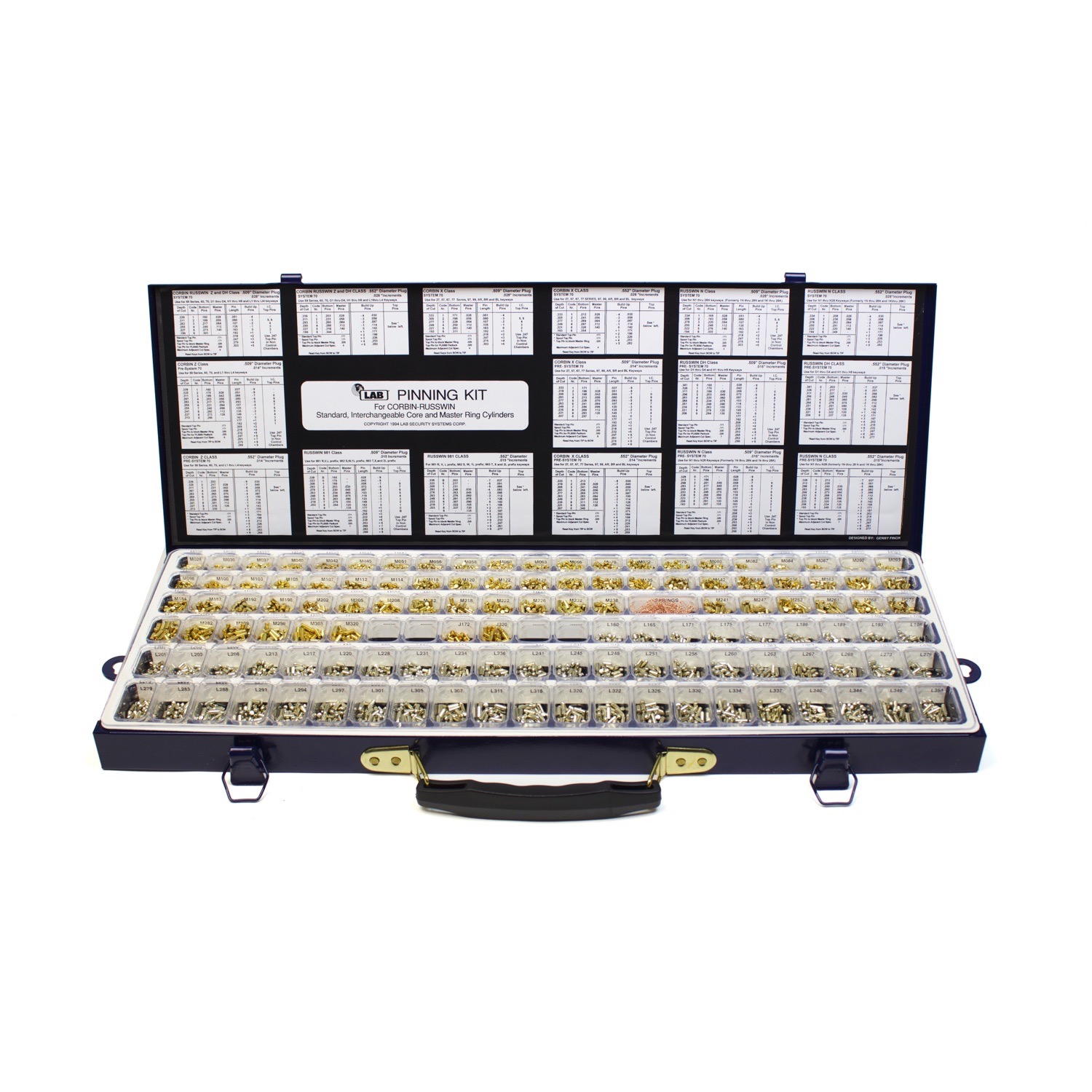

LAB Brand Corbin Russwin Rekeying Kit

Description

  • Constructed of Heavy-Duty Steel with a HARDCOAT finish
  • Leakproof Seal-Tight Cover
  • Contains NEW Technical Up-to-date Pinning Chart created by G.L. Finch
  • For Standard, Interchangeable Core and Master Ring Cylinders
  • 67 Brass-Top Pin Sizes
  • 51 Nickel-Silver Bottom Pin Sizes
  • 2 Spool Pin Sizes (standard).172 & .320
  • Dual-View Pin Tray. Pin sizes are enlarged and printed under a clear plastic tray, both above and inside the pin pockets for easy viewing at all angles.
  • 50 Pins per pocket
  • Dimensions:21-5/8″ x 7-7/8 ” x 1-5/8″
  • View Contents Item ID Listing

Bitting information provided with LAB Brand Corbin Russwin Pinning Kit

LRCK6

For Standard, Interchangeable Core and Master Ring Cylinders

Brand Class System Plug Dia. Increment Notes
CR Z & DH 70 .509 .028 Use for 59 Series, 60, 70, D1 thru D4, H1 thru H8 and L1 thru L14 Keyways
CR Z & DH 70 .552 .028 Use for 59 Series, 60, 70, D1 thru D4, H1 thru H8 and L1 thru L14 Keyways
C Z Pre-70 .509 .014 Use for 59 Series, 60, 70, and L1 thru L4 Keyways
C Z Pre-70 .552 .014 Use for 59 Series, 60, 70, and L1 thru L4 Keyways
C X 70 .509 .028 Use for 27, 57, 67, 77 Series, 97, 99, AR, BR, and BL Keyways
C X 70 .552 .028 Use for 27, 57, 67, 77 Series, 97, 99, AR, BR, and BL Keyways
C X Pre-70 .509 .014 Use for 27, 57, 67, 77 Series, 97, 99, AR, BR, and BL Keyways
C X Pre-70 .552 .014 Use for 27, 57, 67, 77 Series, 97, 99, AR, BR, and BL Keyways
R N 70 .509 .028 Use for N1 thru 28N Keyways. (Formerly 1N thru 28N and 1K thru 28K)
R N 70 .552 .028 Use for N1 thru N28 Keyways. (Formerly 1N thru 28N and 1K thru 28K)
R DH Pre-70 .509 .015 Use for D1 thru D4 and H1 thru H8 Keyways
R DH Pre-70 .552 .015 Use for D1 thru D4 and H1 thru H8 Keyways
R N Pre-70 .509 .015 Use for N1 thru N28 Keyways. (Formerly 1N thru 28N and 1K thru 28K)
R N Pre-70 .552 .015 Use for N1 thru N28 Keyways. (Formerly 1N thru 28N and 1K thru 28K)
R 981 .509 .015 Use for 981 R, V, L prefix; 982 S, W, 1L prefix; 983 T, X, and 2L prefix
R 981 .552 .015 Use for 981 R, V, L prefix; 982 S, W, 1L prefix; 983 T, X, and 2L prefix
